BCC Blast Vibration Monitoring: The location of the BCC MCQ monitor is at the same address, 3 Sir Samuel Griffith Drv (#3SSGD).
Private Home Vibration Monitoring: The location is #3SSGD Home Outdoor Patio.
Private Home Monitoring Process: Defined Process listed here for Blasting and Noise.
Modified Instantel USBM Fatigue Chart: Shows the Instantel Minimate generated chart with the 50% tolerance margins added.

Click on Image, then Use Left and Right Keyboard Arrows to sequence through slides.
SRC - Building Vibration Amplification Testing
SRC - Building Vibration Amplification Testing
BCC MCQ 7-Dec-2017 Blast Vibration Value
BCC MCQ 7-Dec-2017 Blast Vibration Value

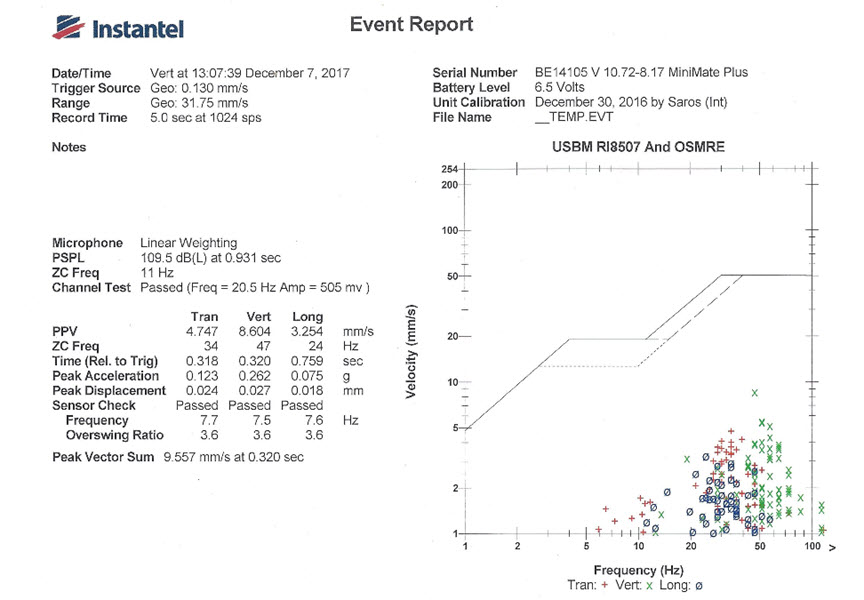

3SSGD 7-Dec-2017 Private Home Monitoring Saros Report
Saros # BE14105, Dec 7 _17 13_07_39 3SSGD Private Home

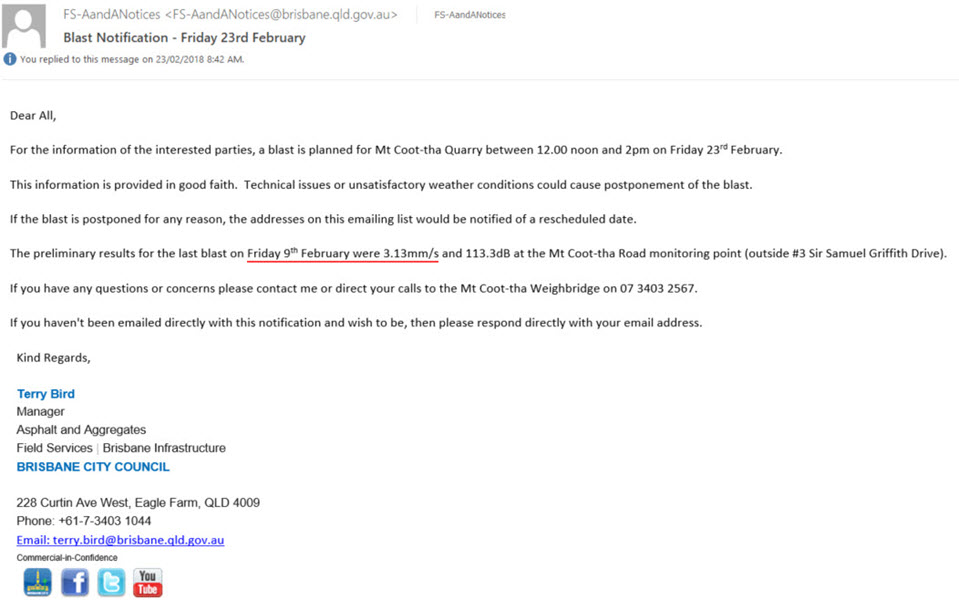

BCC MCQ 9-Feb-2018 Blast Vibration Value
BCC MCQ 9-Feb-2018 Blast Vibration Value

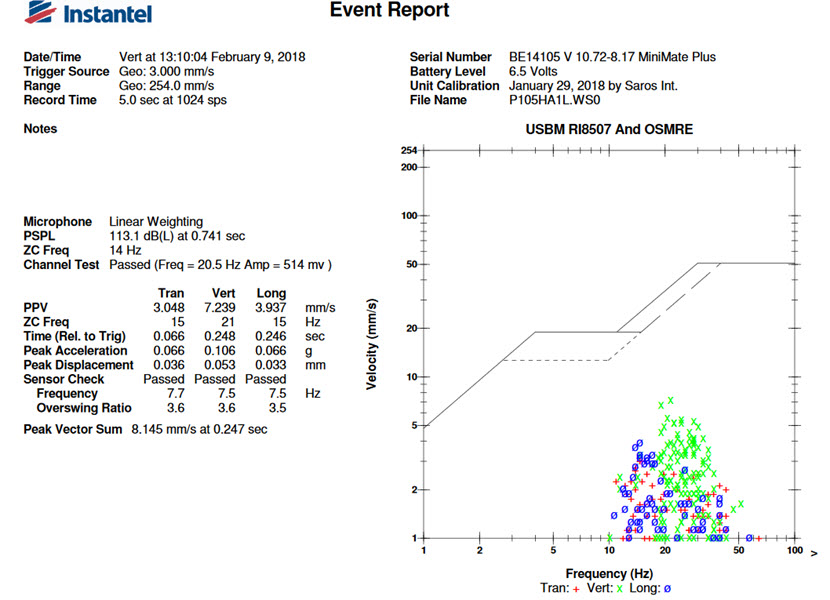

3SSGD 9-Feb-2018 Private Home Monitoring Saros Report
Saros # BE14105, Feb 9 _18 13_07_39 3SSGD Private Home
BCC MCQ 2-Mar-2018 Blast Vibration Value
BCC MCQ 2-Mar-2018 Blast Vibration Value
3SSGD 2-Mar-2018 Private Home Monitoring Saros Report
Saros # BE14105, Mar 2 _18 13_11_02 3SSGD Private Home

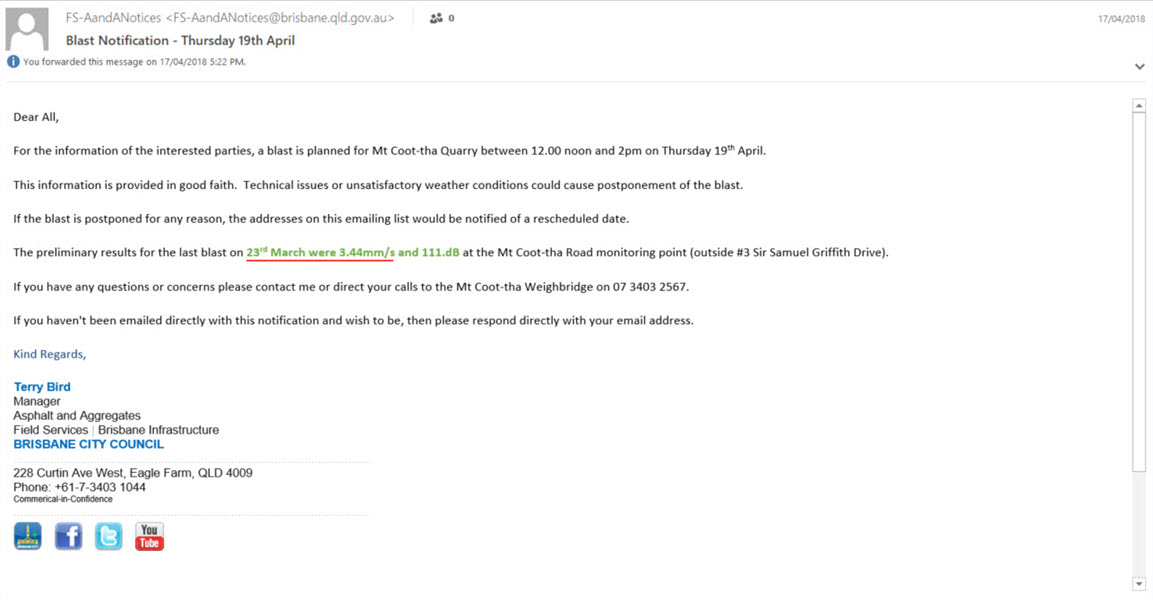

BCC MCQ 23-Mar-2018 Blast Vibration Value
BCC MCQ 23-Mar-2018 Blast Vibration Value

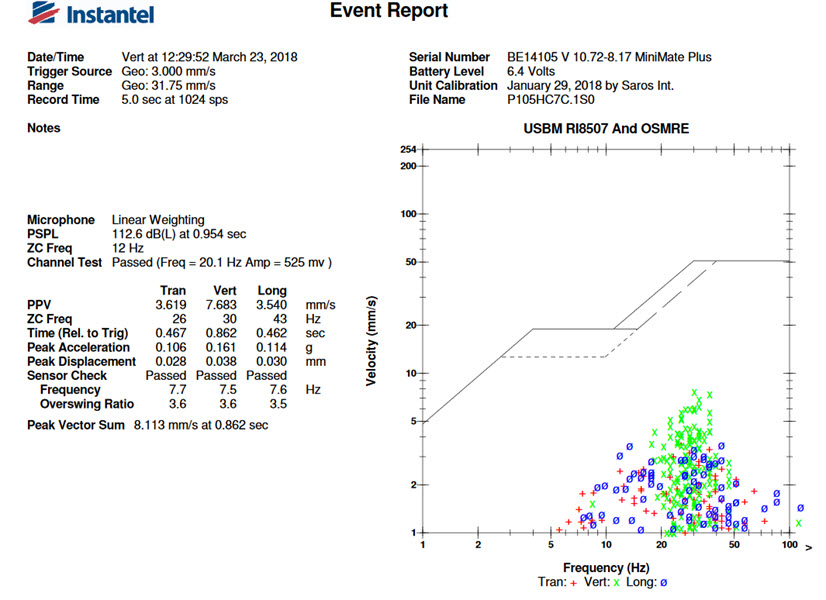

3SSGD 23-Mar-2018 Private Home Monitoring Saros Report
Saros # BE14105, Mar 23 _18 12_29_52 3SSGD Private Home

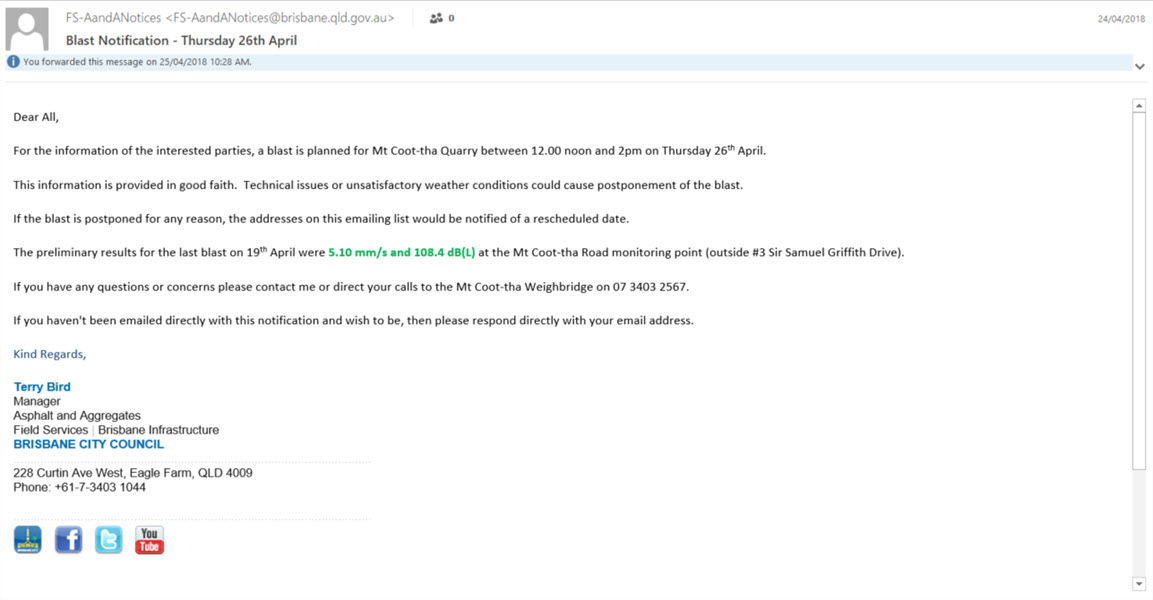

BCC MCQ 19-Apr-2018 Blast Vibration Value
BCC MCQ 19-Apr-2018 Blast Vibration Value

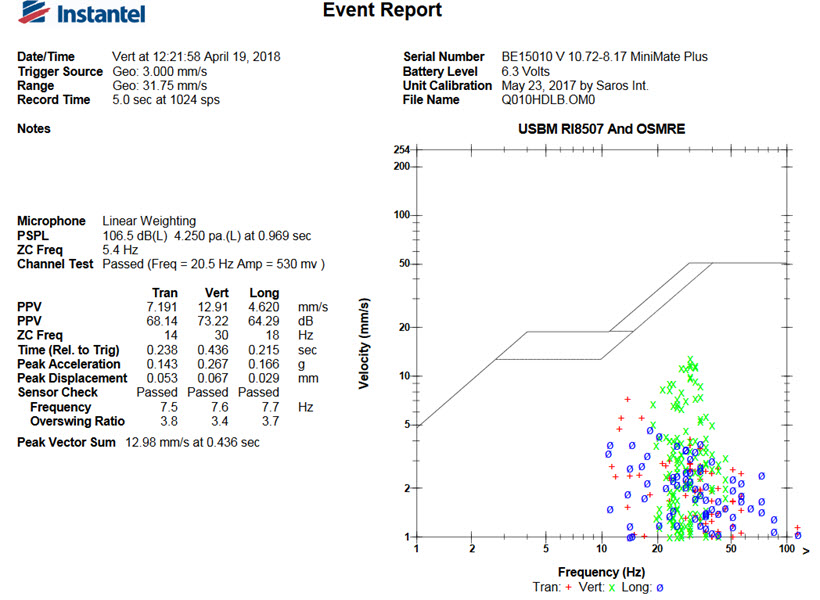

3SSGD 19-Apr-2018 Private Home Monitoring Saros Report
Saros # BE15010, Apr 19 _18 12_21_58 3SSGD Private Home
BCC MCQ 3-May-2018 Blast Vibration Value
BCC MCQ 3-May-2018 Blast Vibration Value

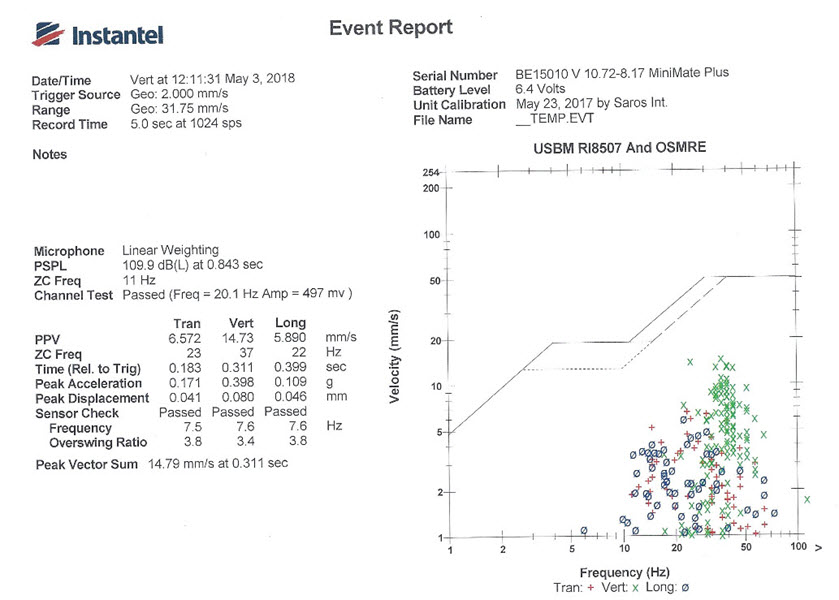

3SSGD 3-May-2018 Private Home Monitoring Saros Report
Saros # BE15010, May 3 _18 12_11_31 3SSGD Private Home

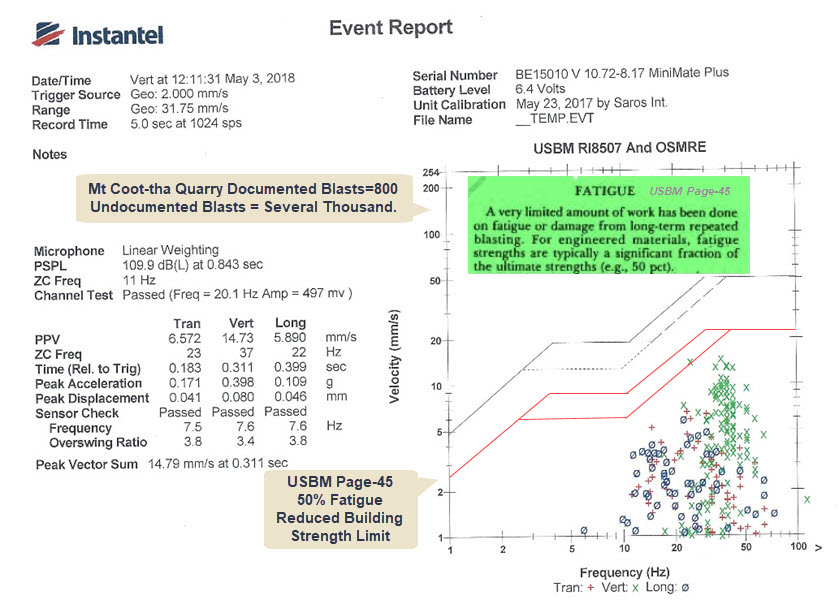

3SSGD 3-May-2018 Private Home Monitoring Saros Report - USBM FatiguedBuilding
Saros # BE15010 May 3 _18 12_11_31 - USBM FatiguedBuilding
BCC MCQ 31-May-2018 Blast Vibration Value
BCC MCQ 31-May-2018 Blast Vibration Value

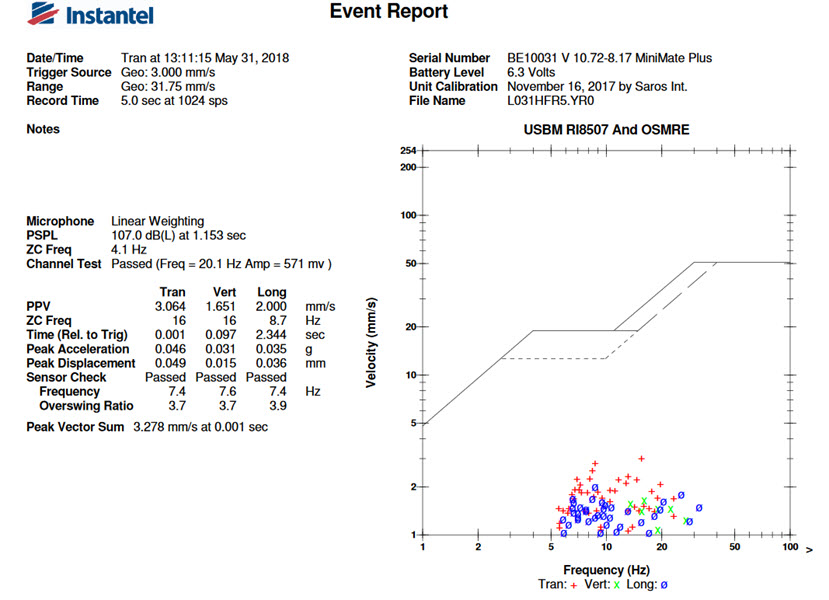

Birdwood Tce 31-May-2018 Private Home Monitoring Saros Report
Birdwood Tce Saros # BE10031, May 31 _18 13_11_15 Private Home
3SSGD 31-May-2018 Private Home Monitoring Saros Report
Saros # BE14108, May 31 _18 13_11_13 3SSGD Private Home

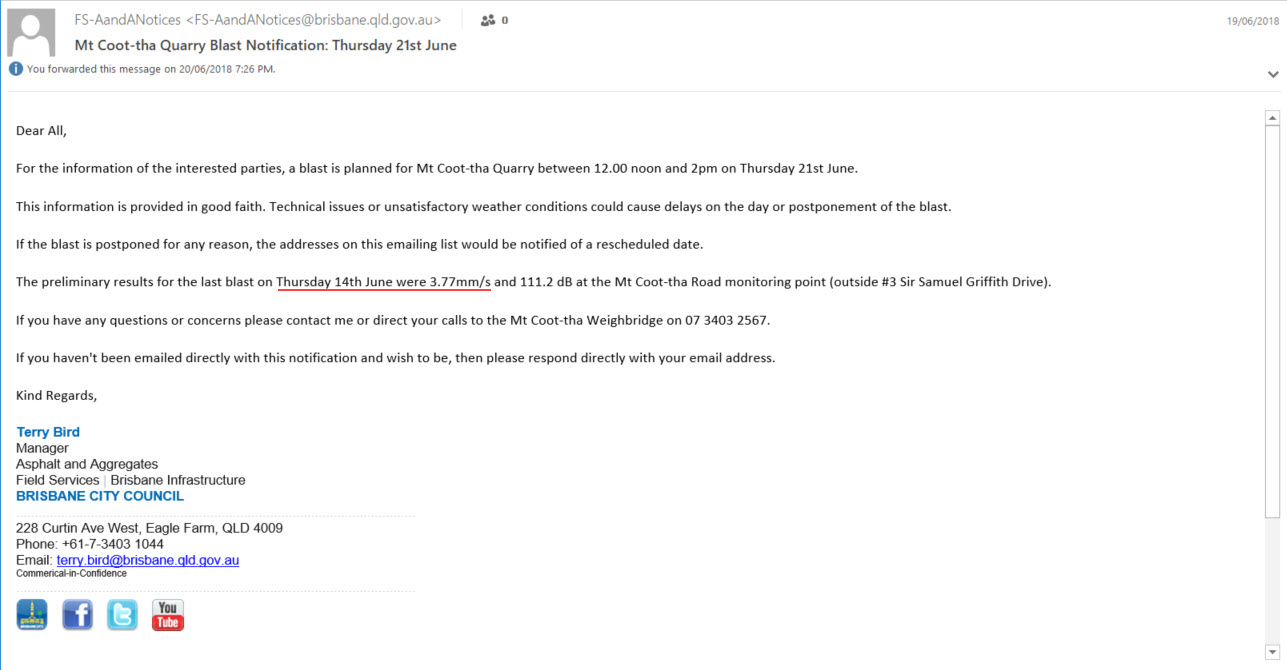

BCC MCQ 14-Jun-2018 Blast Vibration Value
BCC MCQ 14-Jun-2018 Blast Vibration Value
3SSGD 14-Jun-2018Private Home Monitoring Saros Report
Saros # BE14108, Jun 14 _18 13_13_32 3SSGD Private Home

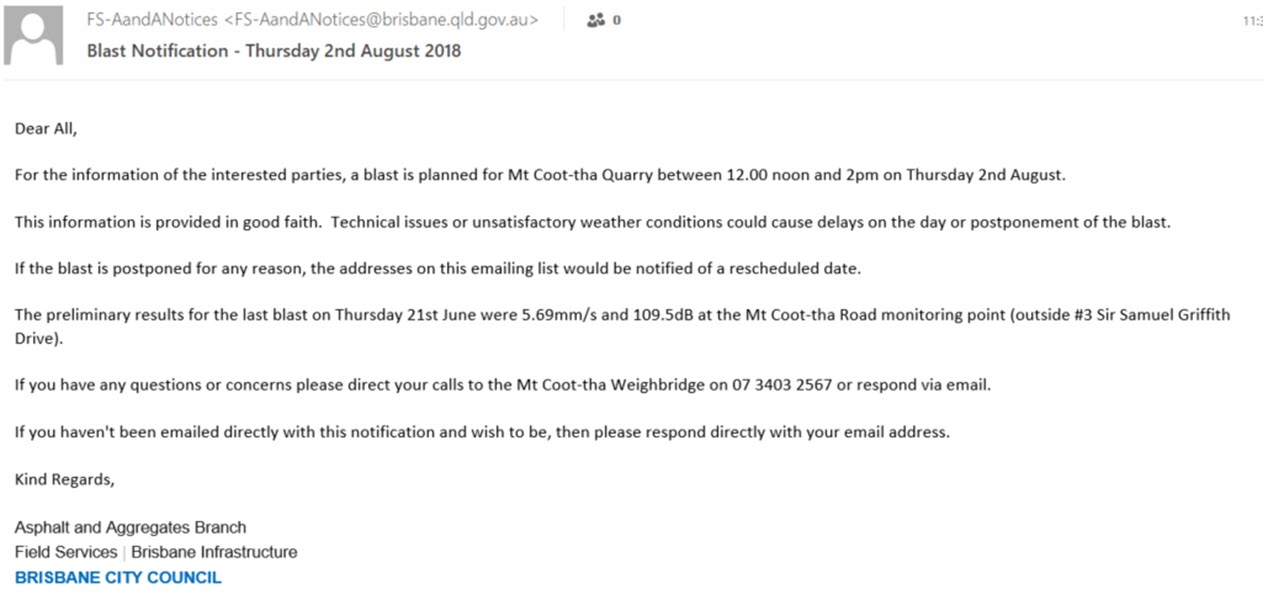

BCC MCQ 21-Jun-2018 Blast Vibration Value
BCC MCQ 21-Jun-2018 Blast Vibration Value

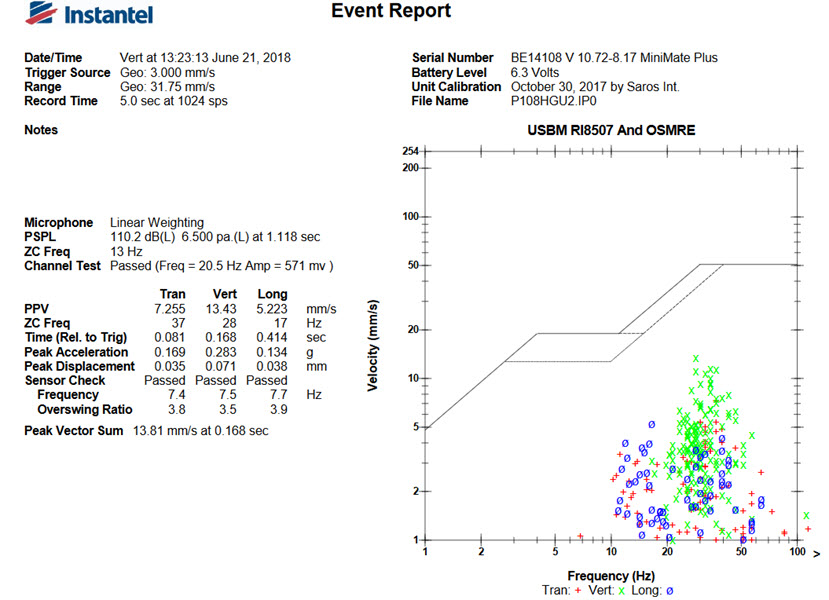

3SSGD 21-Jun-2018 Private Home Monitoring Saros Report
Saros # BE14108, Jun 21 _18 13_13_32 3SSGD Private Home

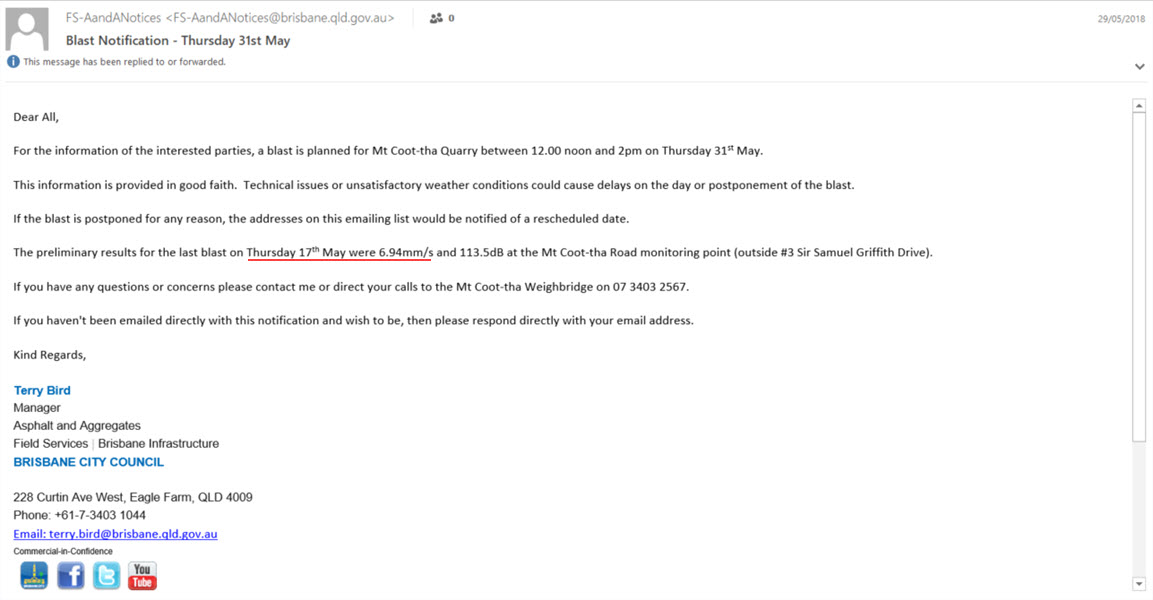

BCC MCQ 17-May-2018 Blast Extrapolation Vibration Value
BCC MCQ 17-May-2018 Blast Extrapolation Vibration Value

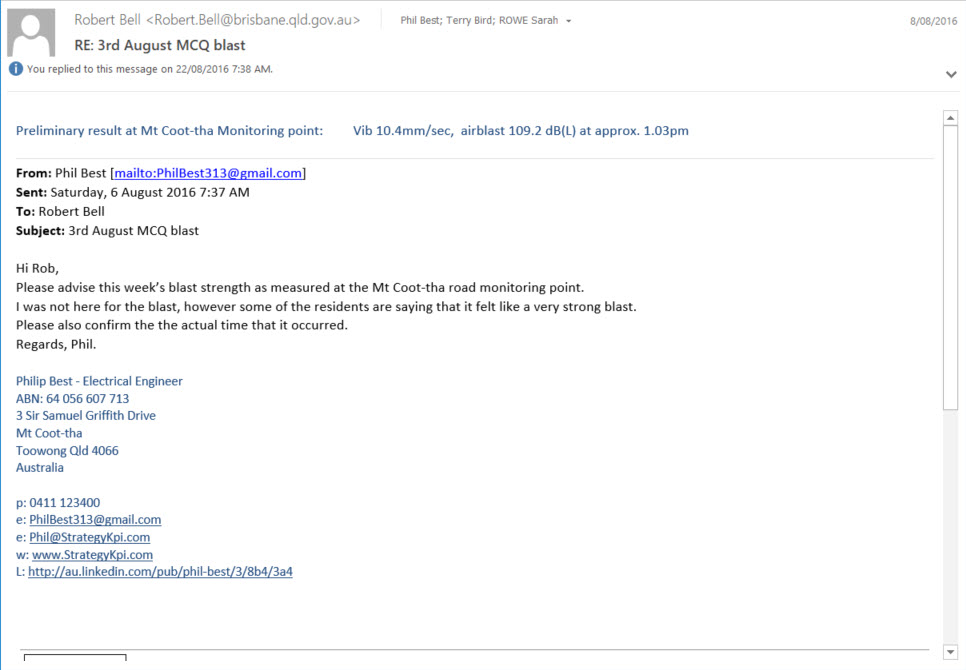

BCC MCQ 3-Aug-2016 Blast Extrapolation Vibration Value
BCC MCQ 3-Aug-2016 Blast Extrapolation Vibration Value
BCC MCQ 22-Nov-2011 Blast Extrapolation Vibration Value
BCC MCQ 22-Nov-2011 Blast Extrapolation Vibration Value

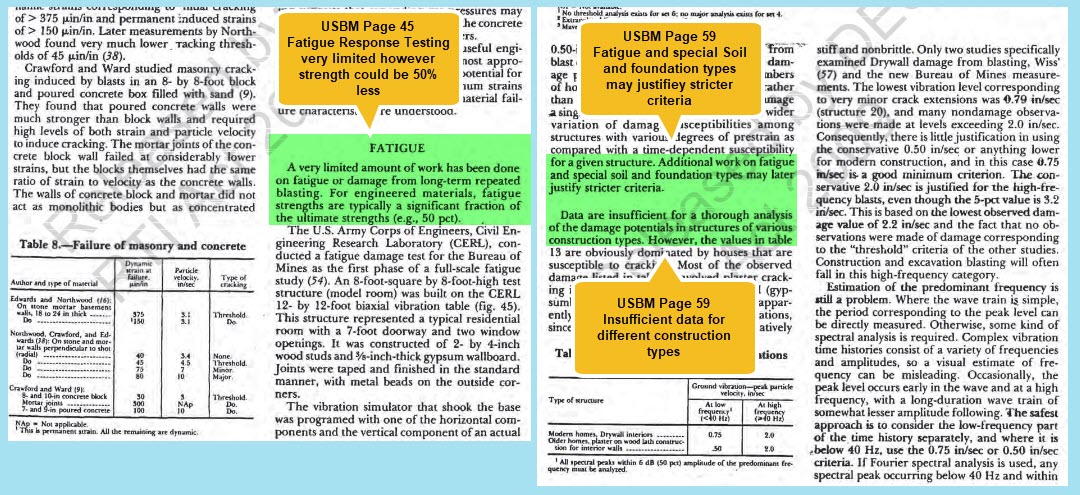

USBM Fatigue Soil Footings Contruction Types All Relevant
USBM Fatigue Soil Footings Contruction Types All Relevant
EDO April 2018 - A dwelling is a vaid measurement location
EDO Advice April 2018 - A dwelling is a vaid measurement location
EDO April 2018 - A dwelling is a vaid measurement location
EHP/DES EPPR00447313-Schedules-F3-F4-F5-F6

Saros Instantel MiniMate Full PDF Page Documents:
The first measurement done on the 7th December was a test measurement with a slightly incorrect transducer direction.
On the 31st May a simultaneous private home measurement was done at Birdwood Tce which measured approximately the same value as that reported by the BCC for Mt Coot-tha Rd.
 - This indicated that the blast vibration threat exists for all Mt Coot-tha Local Residents, including the Stuartholme Historic buildings and Toowong Cemetary Grave Monuments.
Instantel Minimate Report # BE14105, Dec 7 _17 13_07_39.pdf
Instantel Minimate Report # BE14105, Feb 9 _18 13_10_04.pdf
Instantel Minimate Report # BE14105, Mar 2 _18 13_11_02.pdf
Instantel Minimate Report # BE14105, Mar 23 _18 12_29_52.pdf
Instantel Minimate Report # BE15010 Apr 19_18 12_21_58.pdf
Instantel Minimate Report # BE15010 May 3 _18 12_11_31.pdf
Instantel Minimate Report # BE15010 May 3 _18 12_11_31 USBM FatiguedBuilding.pdf
Instantel Minimate Report # BE14108 May 31 _18 13_11_13.pdf
Instantel Minimate Birdwood Tce Report # BE10031 May 31 _18 13_11_13.pdf
Instantel Minimate Report # BE14108, Jun 14 _18 13_13_32.pdf
Instantel Minimate Report # BE14108, Jun 21 _18 13_23_13.pdf
